DAJABARA

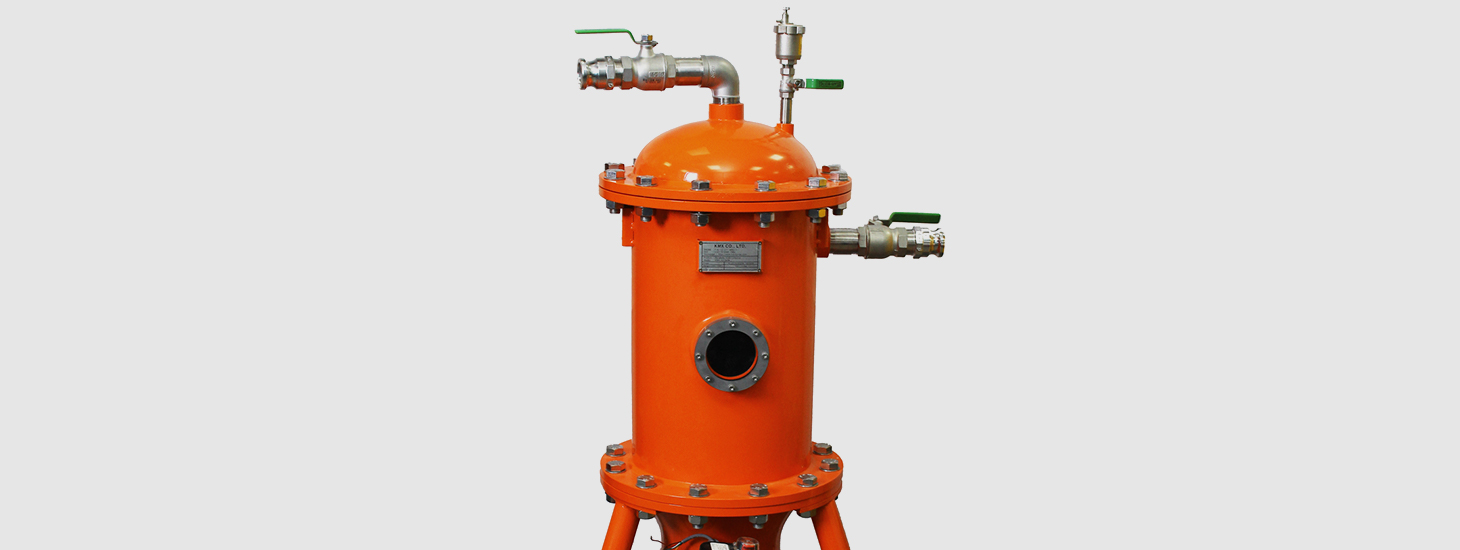

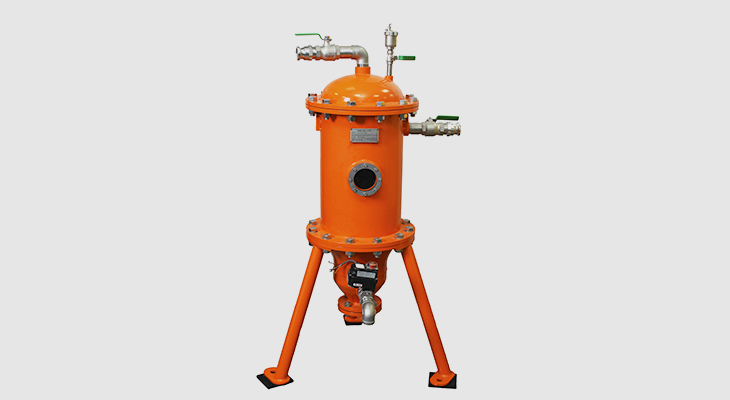

Scale removal and formation prevention device

"Dajabara" cooling tower scale removal device is an eco-friendly product that prevents and removes scale formation in cooling water.

It is a device that uses the principle of electrolysis to capture and remove scale formed or adhered to cooling tower fillers, circulation pipes, and equipment in the cooling water system.

Captures scale-forming ions (i.e., Ca2+, Mg2+) dissolved in cooling water on the electrode plate (cathode) surface

  • Maintains Ca2+, Mg2+ concentrations below solubility levels
  • Prevents scale formation

Inhibits microbial growth in cooling water

  • Sterilization effect due to active chlorine generated through electrolysis chemical reactions

Application sites

Department stores, shopping malls, large buildings, underground shopping centers, hotels, general industrial sites

Operating principle

Cooling water flows between the anode (+) and cathode (-) through the electrolysis tank. This process creates an alkaline pH on the cathode surface and an acidic pH on the anode surface. Chemical reactions on the cathode (-) surface separate and remove precipitates such as CaCO₃ and MgCO₃.

  • Ca (HCO₃)₂+ 2OH⁻ → CaCO₃↓ + 2H₂O + CO₂⁻²
  • Mg (HCO₃)₂→ MgCO₃↓ + 2H₂O + CO₂⁻²

Chemical reactions on the anode (+) surface convert some chlorides into small amounts of active chlorine for sterilization.

  • HO⁻ - e → OH°(hydroxyl radical), Cl⁻ → Cl°(chlorine radical), 2Cl°→ Cl₂(chlorine molecule)

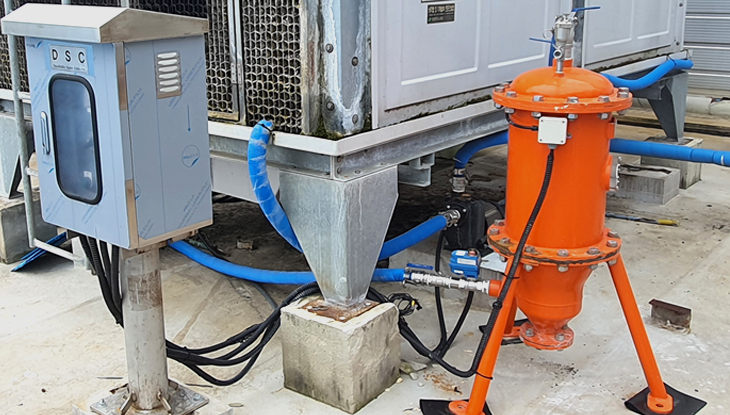

Installation at

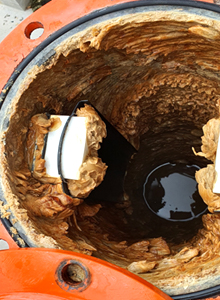

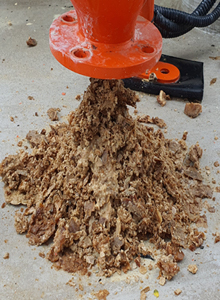

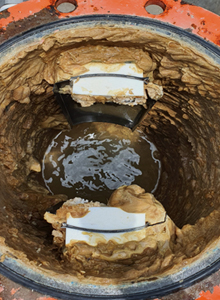

Scale collection: 5.5 kg (41 days)

Collection: 5.5 kg (47 days)

Collection: 5.5 kg (47 days)

Collection: 5.5 kg (47 days)

Expected effects

  • Removal and prevention of various scales in the equipment cooling water system
  • Inhibition of microbial growth by generating sterilizing hydroxyl radicals and chlorine
  • No need to shut down equipment for scale removal in the cooling water system
  • 5 to 10% energy saving expected due to improved efficiency of heat exchangers
  • 70 to 80% reduction in water usage due to decreased cooling water blow-down
  • Cost savings on sterilizers and microbial agents for cooling water treatment
